Three-piece high-platform extended-weld ball valve

BVB-131DLB -3 Piece Ball Valve

SPECIFICATIONS
Available Material	CF8M
Working Pressure	1/4"-2" 1000 PSI 2-1/2"-4" 800 PSI
Ball Bore	Full
End Connection	Extended/ Butt Weld
Size Range	1/4" to 4 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:RTFE/PTFE+50%SS/TFM1600/TFM4215

undefined

Three-piece high-platform extended-weld ball valve

undefined

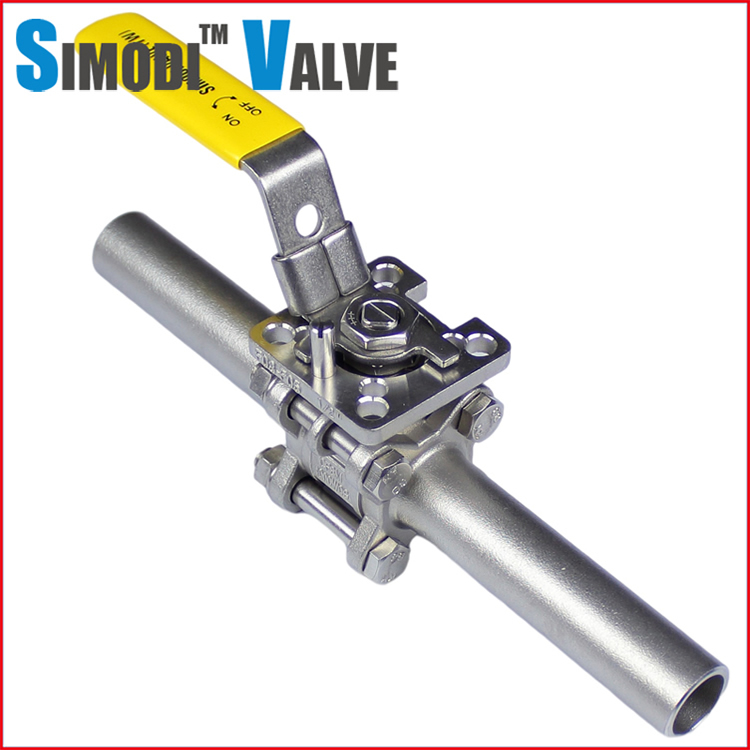

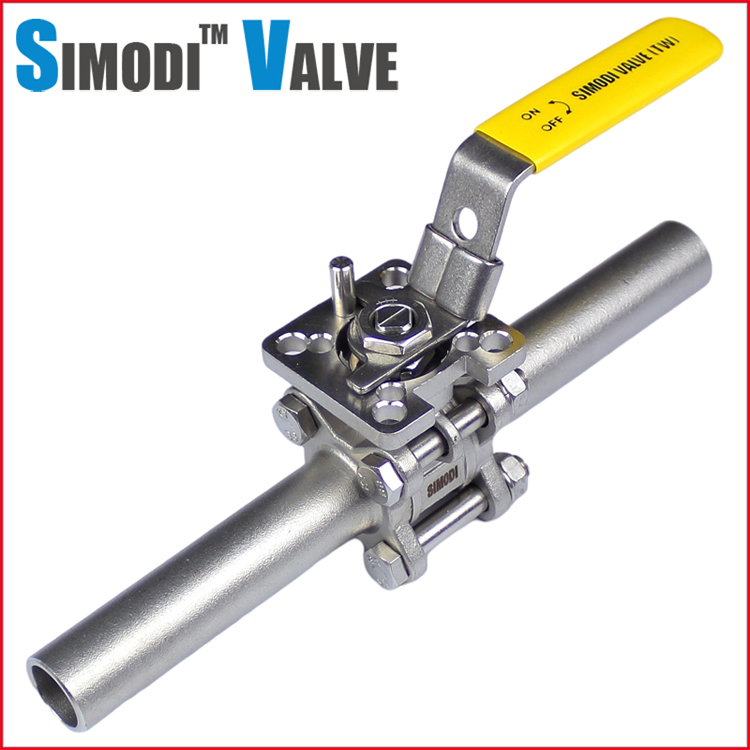

BVB-131DLB Three-piece full-bore extended weld ball valve

SPECIFICATIONS
* Working Pressure: 1/4”~2”1000PSI WOG 2-1/2"~4" 800PSI WOG
* Temperature Range: -15℃～150℃(PTFE)
*Blow-Out-Proof Stem Design
*Antistatic Device
*Investment Casting
*Solution Treatment
* ISO5211 Direct-Mounting of Actuators of Valves Design
* End Types: Butt Welded

SIMODI Ball Valve - Three-piece Ball Valve with Extended Welding Design
